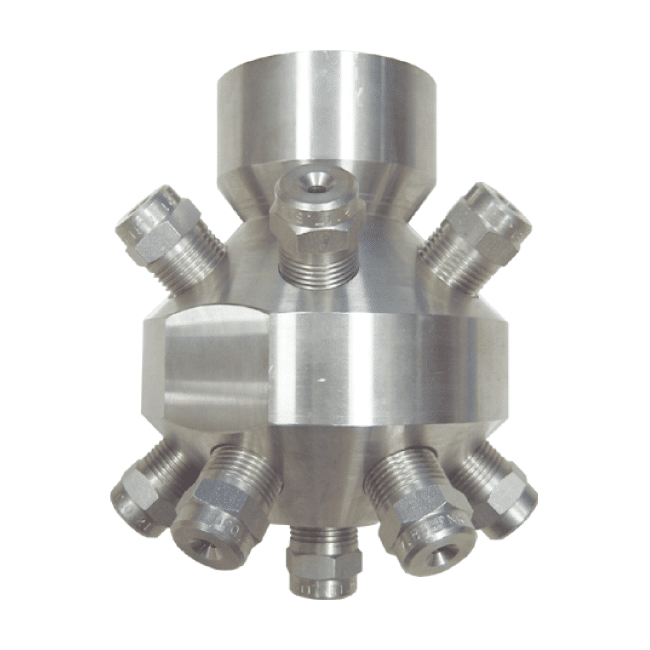

CH – Cluster Nozzle
Max Cleaning Diameter
m
Flow Rate Range
9 - 481 L/min
Pressure Range
1 - 10 bar
Description
CH series includes large and small capacities hollow cone cluster nozzles. They make a cluster spray pattern and are available in 7 and 13 nozzles versions. Several nozzles are assembled on one nipple with small volume and wide spray coverage. The droplets size is 1/3-1/2 compared to those produced by a single nozzle with same capacity. An added value to CH full cone nozzle is their wide spray range.
Product Enquiry
Technical Info
Spray Pattern(s)

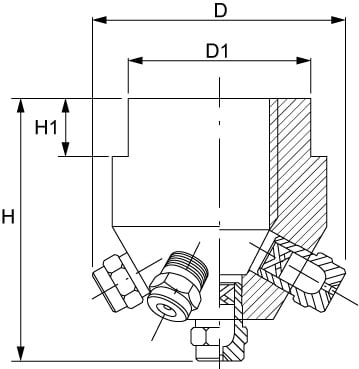

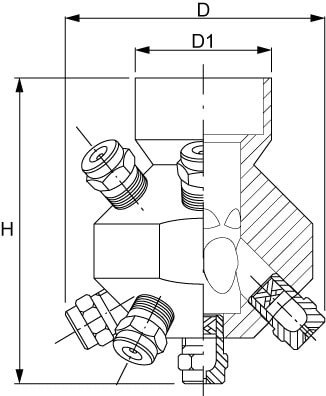

Dimensional Table(s)

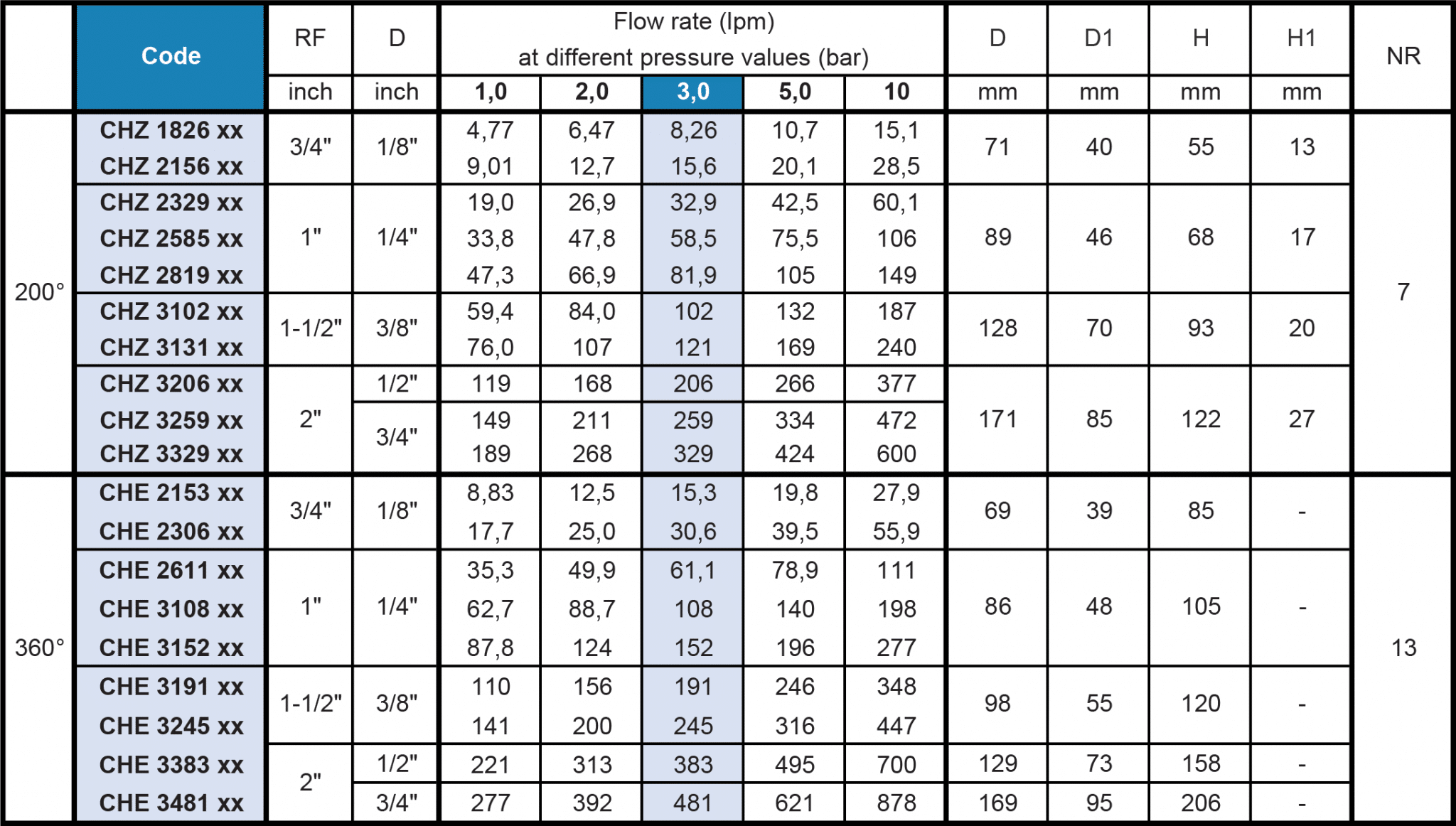

Flow Rate Table(s)

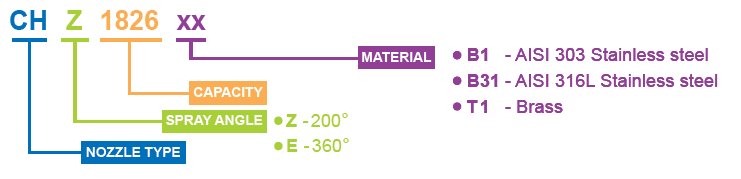

New Code(s)
